10 Panel Solar PV System with SolarEdge Inverter, Battery Storage and Backup Power Solution

As more Irish homeowners look for ways to reduce rising electricity costs, improve energy independence, and lower their carbon footprint, solar energy continues to be one of the smartest investments available. At Veep Energy, we specialise in designing and installing high-performance solar PV systems that deliver reliable energy generation, intelligent battery storage, and backup power capabilities for homes across Ireland.

In this article, we take a closer look at a recently specified 10-panel Solar PV system featuring a SolarEdge inverter, SolarEdge battery, and backup box, explaining the system components, installation process, manufacturer requirements, and the ongoing maintenance needed to ensure long-term performance.

System Overview

This residential solar installation consists of:

  • 10 High-Efficiency Solar PV Panels
  • SolarEdge Inverter
  • SolarEdge Home Battery
  • SolarEdge Backup Interface (Backup Box)
  • Full supply and professional installation

Technical Specifications

  • Solar PV System Size: 4.55 kWp
  • Estimated Annual Energy Yield: 3,640 kWh
  • Battery Storage Capacity: 9.7 kWh
  • Hot Water Diverter: Not Included
  • Yield Calculation Method: SolarEdge Designer

This carefully designed system allows homeowners to maximise solar self-consumption, store surplus electricity for later use, and maintain power to essential household circuits during grid outages when paired with the SolarEdge backup solution.

Understanding the Solar PV Array

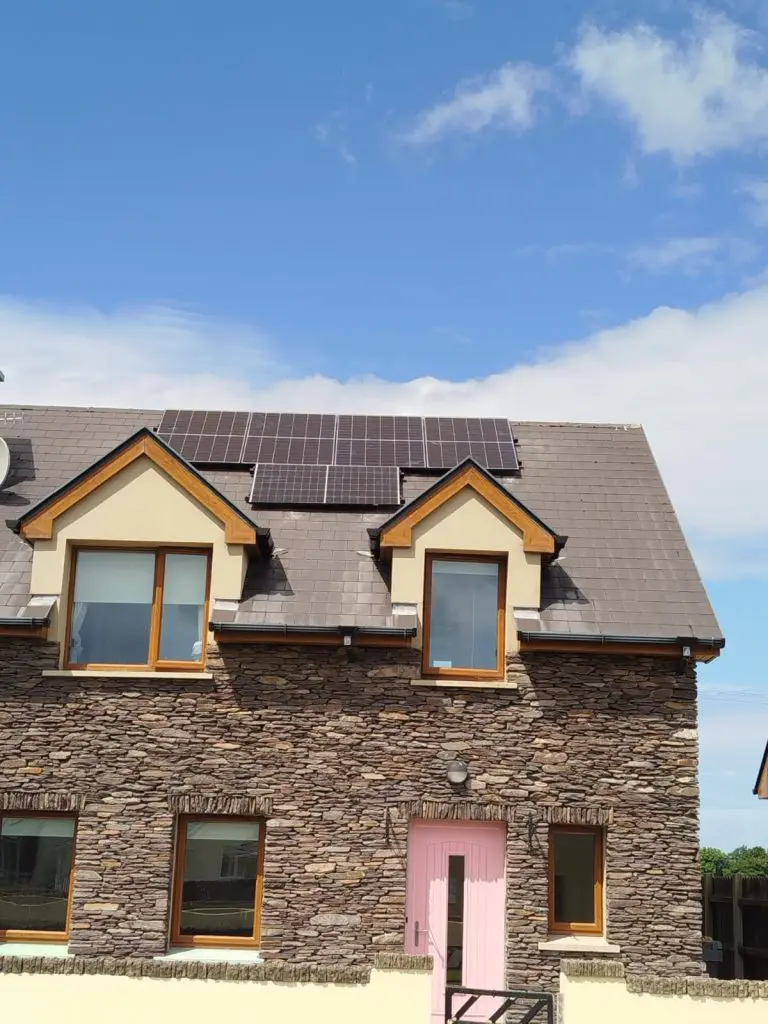

The heart of the system is the 10-panel solar array, with a total generating capacity of 4.55 kWp.

These photovoltaic panels convert sunlight into electricity throughout the day. Even during cloudy Irish weather, modern solar panels continue generating usable power, helping homeowners reduce dependence on grid electricity.

With an estimated annual production of 3,640 kWh, this system can offset a significant portion of a typical household’s electricity usage. The exact savings achieved will depend on:

  • Household energy consumption patterns
  • Roof orientation
  • Roof pitch
  • Local shading conditions
  • Seasonal weather variations

Solar panels are designed for durability and longevity, with expected operational lifespans often exceeding 25 years when correctly installed and maintained.

SolarEdge Inverter Technology

The SolarEdge inverter acts as the system’s intelligent control centre.

Solar panels generate Direct Current (DC) electricity, but homes operate using Alternating Current (AC) electricity. The inverter converts solar-generated power into a format suitable for household use.

Benefits of SolarEdge Inverters

SolarEdge is recognised globally as a premium solar technology manufacturer and offers several advantages:

  • – Module-level monitoring
  • – Enhanced energy harvesting
  • – Advanced safety features
  • – Remote performance tracking
  • – Battery integration compatibility
  • – Smart home energy management

Through the SolarEdge monitoring platform, homeowners can easily view:

  • – Real-time solar production
  • – Energy consumption
  • – Battery charge status
  • – Grid imports and exports
  • – Historical performance data

This provides complete transparency regarding the performance of the solar investment.

SolarEdge Home Battery Storage

One of the most valuable additions to modern solar systems is battery storage.

This installation includes a 9.7 kWh SolarEdge Home Battery, designed to store excess electricity generated during daylight hours.

Instead of exporting surplus energy back to the grid, stored electricity can be used later when energy demand increases.

How the Battery Works

During sunny periods:

  1. Solar panels generate electricity.
  2. Household appliances are powered first.
  3. Excess energy charges the battery.
  4. Remaining surplus can be exported to the grid.

During evenings or cloudy periods:

  1. Stored battery energy powers the home.
  2. Grid electricity usage is reduced.
  3. Energy costs are lowered.

Benefits of Battery Storage

Homeowners benefit from:

  • Increased self-consumption of solar energy
  • Reduced electricity bills
  • Greater energy independence
  • Protection against rising electricity prices
  • Reduced reliance on the national grid

With 9.7 kWh of energy storage, many households can comfortably power evening and overnight household loads using stored solar energy.

Backup Box and Emergency Power Supply

An increasingly popular feature is the inclusion of a SolarEdge Backup Interface, commonly known as the Backup Box.

This component allows the battery system to continue supplying electricity during certain power outages.

What Happens During a Power Cut?

When a grid outage occurs:

  • The Backup Box isolates the property safely from the electrical network.
  • The battery continues supplying designated backup circuits.
  • Solar generation can continue charging the battery during daylight hours.
  • Essential appliances remain operational.

SolarEdge BatteryTypical backup circuits may include:

– Lighting circuits

– Internet routers

– Refrigeration

– Selected sockets

– Alarm systems

– Home office equipment

The exact backup configuration depends on the design agreed during installation.

This feature provides peace of mind, particularly for homeowners working remotely or relying on uninterrupted power for essential household equipment.

Materials Required for Installation

A professional solar installation requires a wide range of high-quality materials to ensure safe, reliable operation.

Typical materials include:

Solar Components

  • 10 Solar PV panels
  • SolarEdge inverter
  • SolarEdge battery
  • SolarEdge Backup Interface
  • SolarEdge optimisers (where applicable)

Roof Mounting Equipment

  • Aluminium mounting rails
  • Roof hooks or roof anchors
  • Mid clamps and end clamps
  • Stainless steel fixings
  • Weatherproof flashing components

Electrical Components

  • DC solar cabling
  • AC electrical cabling
  • Isolator switches
  • Surge protection devices
  • Earthing and bonding equipment
  • Consumer unit connection hardware
  • Metering and monitoring equipment

Safety Equipment

  • Labelling and warning signage
  • Fire-rated cable management systems
  • Protective conduits
  • Waterproof cable glands

All materials are selected to comply with Irish electrical standards and manufacturer installation requirements.

The Installation Process

At Veep Energy, every installation follows a structured process to ensure quality, safety, and performance.

1. Site Survey

Before installation begins, our team conducts a detailed assessment of the property.

This includes:

  • Roof inspection
  • Structural assessment
  • Electrical system review
  • Shading analysis
  • Cable routing evaluation

The solar system design is then created using SolarEdge Designer, allowing accurate yield predictions and system optimisation.

2. System Design & Approval

The proposed layout is designed to maximise energy production while ensuring compliance with:

  • SolarEdge installation guidelines
  • Irish electrical regulations
  • ESB Networks requirements
  • Building and safety standards

3. Roof Installation

The installation team securely mounts the solar framework onto the roof structure.

The panels are then installed and connected using weather-resistant mounting systems designed to withstand Irish weather conditions.

4. Electrical Installation

Certified electricians install:

  • SolarEdge inverter
  • Battery storage system
  • Backup box
  • Safety isolators
  • Monitoring equipment

All electrical connections are thoroughly tested and verified.

5. Commissioning and Testing

Before handover, the system undergoes extensive testing to verify:

  • Correct inverter operation
  • Battery functionality
  • Monitoring connectivity
  • Backup system performance
  • Safety compliance

The homeowner is then guided through the SolarEdge monitoring platform and system operation.

Manufacturer Requirements

SolarEdge products must be installed according to strict manufacturer specifications.

Key requirements include:

Proper Ventilation

The inverter and battery must be installed in locations with adequate airflow to prevent overheating and ensure maximum efficiency.

Approved Installation Methods

Only approved mounting systems and installation procedures should be used to maintain warranty coverage.

Qualified Installers

Installation should be completed by trained and competent solar professionals familiar with SolarEdge technology and local regulations.

Monitoring Connectivity

Internet connectivity is recommended to enable:

  • Remote monitoring
  • Performance analytics
  • Software updates
  • Fault notifications

Electrical Compliance

All wiring, protection devices, and earthing arrangements must meet applicable regulatory standards and SolarEdge installation requirements.

Aftercare and Maintenance

One of the major advantages of solar energy systems is their relatively low maintenance requirements.

However, regular inspection helps maintain peak performance.

Solar Panel Maintenance

Panel surfaces should remain free from excessive dirt, leaves, moss, or debris.

Ireland’s rainfall naturally cleans panels for much of the year, but occasional visual inspections are recommended.

Battery Maintenance

The SolarEdge battery is largely maintenance-free.

Homeowners should:

  • Keep ventilation areas clear
  • Avoid storing items around the battery
  • Monitor battery performance via the app
  • Contact qualified technicians if fault notifications occur

Monitoring System Checks

The SolarEdge monitoring platform allows users to quickly identify changes in system performance.

Regular reviews can help detect:

  • Unexpected production drops
  • Communication faults
  • Battery charging issues
  • Grid connection problems

Professional Inspections

Periodic inspections by qualified solar technicians are recommended to check:

  • Electrical connections
  • Mounting system integrity
  • Inverter operation
  • Battery health
  • Overall system safety

Why Choose Veep Energy?

At Veep Energy, we believe every homeowner should have access to reliable, high-quality renewable energy solutions. Our experienced team manages every stage of the process, from initial consultation and system design through to installation, commissioning, and ongoing support.

This 4.55 kWp Solar PV system with SolarEdge inverter, 9.7 kWh battery storage, and backup power functionality offers an excellent balance of energy generation, storage capacity, and resilience. With an estimated annual yield of 3,640 kWh, homeowners can significantly reduce their electricity bills while increasing their energy independence for years to come.
