3.2kW Residential Solar PV Installation: A Smart Step Towards Energy Independence

As electricity prices continue to rise, more homeowners across Ireland are turning to solar energy as a reliable and cost-effective way to reduce their energy bills and increase their home’s sustainability. At Veep Energy, we specialize in designing and installing high-quality solar PV systems that are tailored to each property’s energy needs.

By choosing a 3.2kW solar panel setup, homeowners can optimize their energy usage and potentially save on electricity costs.

This article explores a typical 3.2kW residential rooftop solar PV installation, including the equipment used, installation process, manufacturer requirements, expected performance, and maintenance recommendations to help homeowners understand exactly what is involved. The 3.2kW system is a great investment for anyone looking to harness solar energy efficiently.

System Overview

This residential solar PV system has been designed to maximize self-consumption while providing excellent long-term performance and reliability.

System Specifications

Solar PV System Size: 3.2kWp
Number of Panels: 8 Solar PV Modules
Panel Type: Monocrystalline Solar Panels
Panel Rating: 395W to 405W per panel
Panel Orientation: South Facing
Roof Pitch/Tilt: 45°
Inverter: Huawei 5kW Hybrid Inverter
Battery Storage: Not included in this installation
Power Diverter: MyEnergi Eddi
Estimated Annual Energy Yield: 2,600kWh to 3,100kWh
Estimated Annual Savings: €760 to €960
Potential SEAI Grant: Up to €2,100
Labour Warranty: 5 Years
Monitoring: Free Lifetime Online Monitoring Portal

Why This System Works So Well

The combination of a south-facing roof and a 45° roof pitch creates excellent conditions for solar generation in Ireland. This positioning allows the panels to capture maximum sunlight throughout the day and throughout the year.

The 3.2kW system allows for greater energy independence, especially beneficial as energy prices continue to rise.

With an expected annual generation of between 2,600kWh and 3,100kWh, homeowners can significantly reduce their reliance on electricity imported from the grid while lowering their carbon footprint.

The system has also been future-proofed through the inclusion of a Huawei Hybrid Inverter, meaning a battery can be added later if energy storage becomes desirable.

Premium Solar Panels for Long-Term Performance

Investing in a 3.2kW solar panel installation not only contributes to lowering electricity bills but also supports a sustainable environment.

This installation features high-efficiency Monocrystalline Solar PV Modules, including industry-leading models such as the Qcells Q.Peak Duo ML-G9 Series.

Key Benefits

Excellent performance in Irish weather conditions
High conversion efficiency
Low degradation rates
Strong wind and snow load resistance
Sleek all-black appearance (where applicable)
25-Year Manufacturer Performance Warranty

Monocrystalline technology is widely regarded as the most efficient solar panel technology available for residential applications, providing greater energy production from limited roof space.

With a 3.2kW system, homeowners can maximize their self-consumption of solar energy.

Huawei 5kW Hybrid Inverter

The heart of any solar PV system is the inverter.

For this installation, Veep Energy uses the Huawei SUN2000 5kW Hybrid Inverter, one of the most trusted inverter platforms available today.

Features Include

– Converts DC electricity from solar panels into usable AC electricity

– Hybrid functionality allows future battery integration

– Advanced safety monitoring

– Built-in smart energy management

– Remote performance monitoring via smartphone app

– Compact and modern design

– 10-Year Manufacturer Warranty

The hybrid functionality means homeowners can add battery storage at a later stage without replacing the inverter, helping to protect future investment.

Battery Storage Options

This particular installation does not include a battery system, meaning excess electricity generated during daylight hours will either be consumed within the home or exported to the national grid where applicable.

For those considering energy storage, the 3.2kW system is compatible with battery solutions.

Future Battery Compatibility

Should the homeowner decide to add battery storage later, the Huawei Hybrid Inverter can seamlessly integrate with a:

Huawei LUNA2000 High Voltage Lithium-Ion Battery

Battery Technology

Lithium-Ion (LiFePO4 technology)
Modular design
Expandable capacity
High round-trip efficiency
Safe thermal management system
10-Year Manufacturer Warranty

Benefits of Battery Storage

Increased self-consumption of solar energy
Reduced dependency on the electricity grid
Backup capability in certain configurations
Improved return on investment
Greater energy independence

While a battery is not essential, many customers choose to add one later as their energy requirements evolve.

A 3.2kW setup may provide backup power options, increasing energy reliability.

MyEnergi Eddi Power Diverter

One of the standout components included in this system is the MyEnergi Eddi Power Diverter.

Rather than allowing excess solar electricity to be exported to the grid, the Eddi intelligently diverts surplus power to heat household water.

Benefits of the Eddi

Reduces reliance on immersion heaters
Maximizes solar self-consumption
Provides free hot water during sunny periods
Lowers overall energy bills
Works automatically without user intervention

For many Irish households, the Eddi quickly becomes one of the most appreciated energy-saving technologies within the home.

Materials Required for Installation

A professional solar PV installation requires more than just panels and an inverter.

Typical Materials Include

Roof Mounting System

Aluminium rails
Roof hooks or roof anchors
Mid and end clamps
Weatherproof flashing components

Electrical Equipment

DC cabling
AC cabling
MC4 solar connectors
Isolation switches
Surge protection devices
Earthing equipment
Distribution board upgrades where required
Fuses and circuit protection devices

Safety Equipment

Four-pole Fireman Safety Switch
Warning labels and signage
Cable management systems

All materials used are selected to comply with current Irish electrical standards, SEAI requirements, and manufacturer installation guidelines.

The comprehensive installation process for a 3.2kW system ensures optimal performance and longevity.

The Installation Process

At Veep Energy, every installation follows a structured process to ensure safety, efficiency, and long-term reliability.

1. Initial Survey and System Design

Before work begins, a detailed site assessment is carried out to evaluate:

Roof condition
Available roof space
Shading analysis
Electrical infrastructure
Energy usage patterns
Grant eligibility

The most suitable system configuration is then designed specifically for the property.

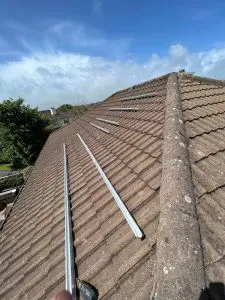

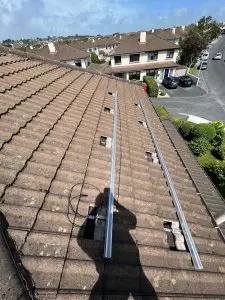

2. Mounting System Installation

The roof mounting structure is installed first.

Professional installers securely attach roof anchors and aluminium rails to the roof structure while maintaining weatherproof integrity.

Every mounting point is carefully sealed to prevent water ingress.

3. Solar Panel Installation

The eight solar panels are mounted onto the rail system and secured according to manufacturer torque specifications.

Panels are wired together in a carefully designed string configuration to maximize efficiency and performance.

4. Inverter Installation

The Huawei Hybrid Inverter is typically installed in a suitable indoor or sheltered location.

Installers connect:

Solar DC cables
AC supply cables
Safety isolators
Monitoring equipment
Future battery communication connections

5. Eddi Installation

The MyEnergi Eddi unit is installed and configured to divert excess solar generation towards water heating whenever surplus energy becomes available.

6. Electrical Testing and Safety Checks

Comprehensive testing is performed, including:

Insulation resistance testing
Continuity testing
Earthing verification
Polarity testing
Inverter commissioning
Monitoring system setup

7. Grid Commissioning

Following successful testing, the system is commissioned and connected to the grid in accordance with Irish regulations.

Homeowners are then guided through the monitoring platform and system operation.

Ultimately, a well-installed 3.2kW system leads to enhanced home value and energy efficiency.

Manufacturer Installation Requirements

To maintain warranty protection and ensure optimal performance, manufacturers require that:

Panels are installed according to approved mounting specifications.
Maximum wind and snow load limits are respected.
Approved mounting systems are used.
Electrical connections are completed by qualified installers.
Correct cable sizing is used.
Ventilation clearances around the inverter are maintained.
Environmental conditions remain within operating specifications.
Equipment registration and commissioning are completed correctly.

Failure to follow manufacturer guidelines can affect performance and warranty coverage, which is why professional installation is essential.

Monitoring Your Solar Performance

Every system includes a WiFi communication kit and access to a free monitoring portal for life.

Homeowners can monitor:

– Daily electricity production

– Monthly generation figures

– Historical performance data

– Self-consumption levels

– System health notifications

Having visibility of system performance allows users to maximize savings and quickly identify any issues should they arise.

Solar PV Maintenance and Aftercare

One of the major advantages of solar PV technology is its low maintenance requirements.

Recommended Maintenance

Visual Inspection

Twice per year homeowners should check for:

Dirt build-up
Fallen leaves
Bird activity
Physical damage

Panel Cleaning

Irish rainfall naturally cleans panels for most of the year.

However, occasional professional cleaning may be beneficial where:

Heavy debris accumulates
Bird fouling is present
Coastal salt deposits develop

Electrical Inspections

A professional inspection every few years is recommended to verify:

Cable condition
Safety devices
Inverter operation
System performance

Monitoring Review

Customers should regularly review their monitoring portal to ensure production remains consistent with expected output.

SEAI Grant Support

Veep Energy manages the complete SEAI grant administration process, including:

Veep Energy is committed to helping you navigate the 3.2kW installation process and grant applications.

Grant guidance
Required documentation
BER assessment coordination
System certification
Final grant submission support

This simplifies the process for homeowners and helps ensure the available grant funding is claimed correctly.

Our team is here to assist with any questions about the 3.2kW solar system and its benefits.

Final Thoughts

A 3.2kW rooftop solar PV system with Huawei hybrid inverter technology and MyEnergi Eddi power diversion offers homeowners an excellent opportunity to reduce electricity bills, improve energy efficiency, and prepare for a more sustainable future.

The 3.2kW solar PV system represents a significant step in achieving energy independence.

With high-quality monocrystalline solar panels, smart energy management, future battery compatibility, comprehensive warranties, and professional installation from Veep Energy, this system represents a reliable long-term investment for any Irish household.

Adopting a 3.2kW solar panel system enhances your energy resilience.

Whether your goal is lower energy costs, greater independence from rising electricity prices, or reducing your environmental impact, solar power is one of the most effective home improvements available today.
