Huawei Solar Inverter with Battery Time Of use Setting –
Local Mode (Work if you are on site)
1. Download the Fusion Solar or Sun2000 App (depends on Android / IOS device)
Download “Fusion solar” or “Sun2000” app from App Store
https://apps.apple.com/ie/app/sun2000/id1055287443
or this newer version

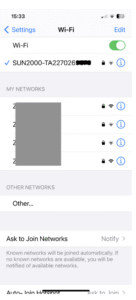

2) In iPhone settings find the WiFi Hotspot for the inverter SUN2000-Serial No. of the inverter (as below)
3) Scan the Inverter for Connecting to it

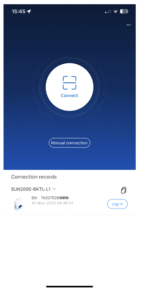

Start the “Sun2000 / Fusion Solar” app on iPhone. This brings you to the screen below. Use the large connect button to scan the QR code on the side of the inverter and log in. If you’ve previously logged into the inverter, your inverter will be listed, as below. Hit the log in button beside the inverted name and log on with Installer credentials
4) Programming Huawei Battery Time of Use (ToU) through the Huawei Solar Inverter – Local mode

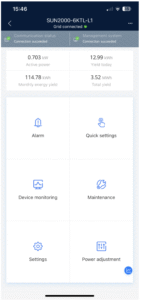

Select “Quick Settings” (upper right tile).

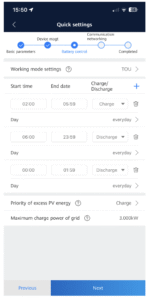

5) Set Time of Use settings with the “Quick Settings” – locally
This brings you to the first of five Set up screens. Press the Next button to move to next screen to get to“Device Management”
Huawei Solar Inverter with Battery Time Of use Setting – Local Mode PDF Guide
1 file(s) 1,015.30 KB
